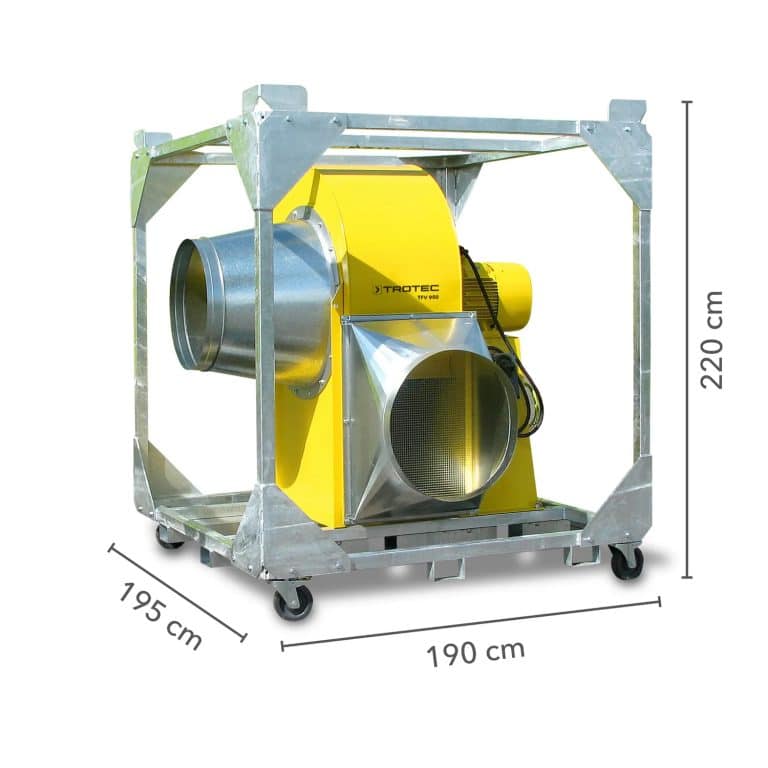

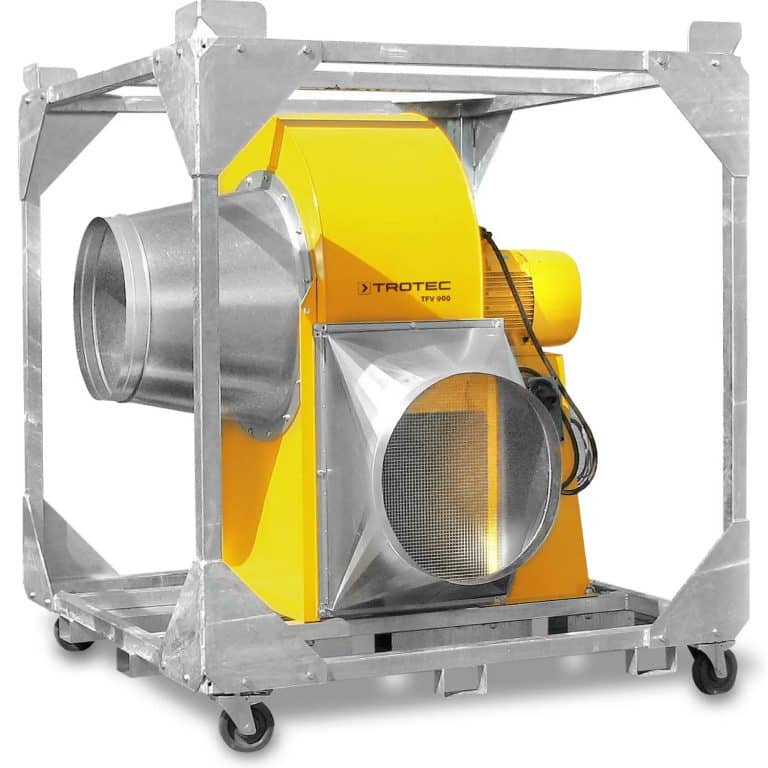

TFV 900 Radial Fan
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed enim erat, sollicitudin ut libero non, consequat consequat risus. Quisque quis ante a justo cursus lobortis. Duis nibh nunc, placerat sed aliquam eget, lobortis vitae magna. Duis finibus tempor metus, vitae viverra arcu. Pellentesque in tortor posuere, auctor enim sed, feugiat felis. Sed pretium diam et lorem sagittis finibus. Sed eget ornare elit. Aenean orci ipsum, pellentesque ut odio ut, eleifend imperdiet arcu. Aenean laoreet elit sit amet pharetra dictum.
Interested in hiring this product?
0808 169 1919Specification
Performance Data
| Max Airflow: | 33,600 m³/hr |
| Air Pressure Max.: | 2,150 Pa |
| Air Outlet Velocity: | 34 m/s |
| Air Discharge Speed: | 122.4 Km/h |
| Fluid Temperature Max.: | 80°C |
| Operating Range: | -20 / +40°C |
| Fan Type: | Radial |
| Control: | 1 Stage |
Connections
| Hose Connection: | 630 mm |
| Hose Length Max.: | 80 m |
| Intake Nozzle: | 630 mm |
| Discharge Nozzle: | 630 mm |
Electrical
| Power Supply: | 415V 3Ø 50Hz |
| Plug Type: | 32A 5 pin BS4343 |
| Running Amps: | 39 A |
Physical
| Sound level: | 76 dBA |
| Weight: | 450 Kg |
| Dimensions (Length): | 1680 mm |
| Dimensions (Width): | 1810 mm |
| Dimensions (Height): | 1680 mm |
